A remote head opening up possibilities for wide variety of shots!
We all are well aware of the fact, that camera movement help setting the tone for the scene, build dramatic effects and simply add beauty to your shots. The combination of remote head and crane is highly helpful in achieving this goal. But if you directly mount the camera on the crane, it will restrict the movement of the camera and narrow the creative possibilities. The specially designed 2-Axis head spy allows unrestricted 360° pan and tilt movements, giving you the freedom to take a wide variety of shots.

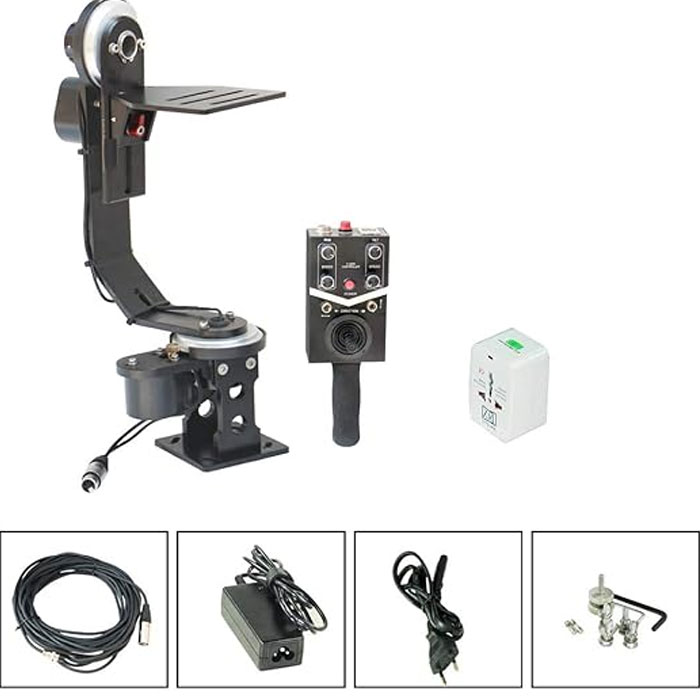

What’s in The Box
– Joystick Controller
– 12volt AC Adapter
– 15meter / 49foot long Control Cable
– Universal Adapter
– Carrying Case with Custom-Fit Packing
Technology That Lasts!
The technologically advanced 2-axis head spy is constructed from high-grade aluminum that lets you use it successfully for years to come. The pan & tilt movements are controlled by 12V joystick controller.
Specifications
– Pan Tilt Head Material: High Grade Aluminium
– Maximum Camera Package Load Capacity: 6kg (13.2lb)
– Pan, tilt: 360 degrees
Slowest Speed : 2 minutes
Highest Speed : 7 seconds
– Motors: Two high torque, coreless DC motors that rotates (pans) and tilts the head 360 degrees

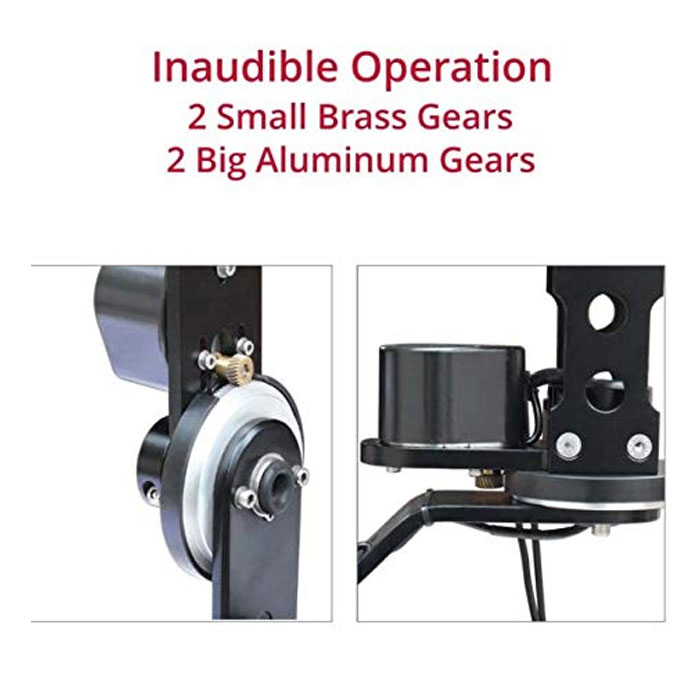

– Gears : 2 Big Aluminum Gears (Dia- 88mm)
2 Small Brass Gears (Dia- 13.5mm)

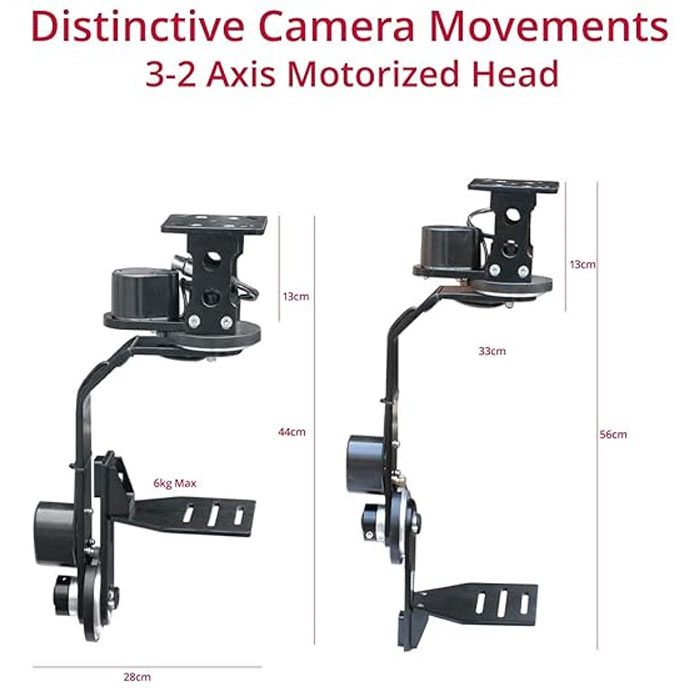

– Minimum height of head: 18.5 inches
– Maximum height of head: 22 inches
– AC Adapter input: AC 100 – 240V ; output – DC 12V -2A
– Cable Length: 15 meter
– Cable Connector: 4-Pin XLR
-Weight of Pan Tilt head: 2.7kg (5.9lbs)
– Box Dimensions: 52 X 34 X 18 cm

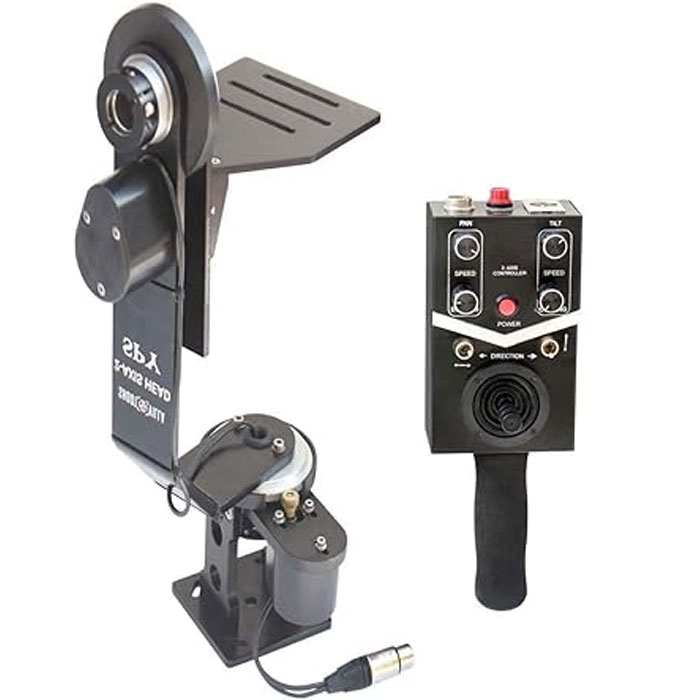

JOYSTICK CONTROLLER
– Joystick Controller: 2-Axis
– Connectors: 2x 4-Pin XLR male connectors
– Pan/Tilt Direction: Yes
– Upgraded with: Damping knob
– Weight of Joystick box: 800grms
|

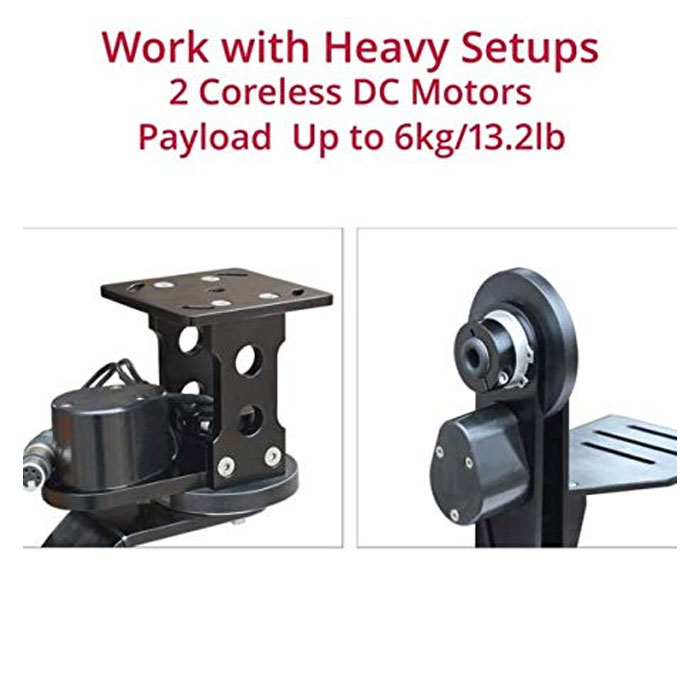

Payload Capacity The pan-tilt head has two coreless high torque motors provide the payload capacity of 6kg/13.2lb which is substantially higher than its counterparts. The high-quality coreless motors also provide the inaudible movements. |
|
Unrestricted Movement The head has a slip ring that doesn’t let the wires to tangle with each other enabling 360° unrestricted pan & tilt movements. |
|
Minimum Wear And Tear The high strength brass gears are engineered to withstand long hours of functions and have minimum wear and tear. |
Functions of Joystick Controller
Speed Controller
